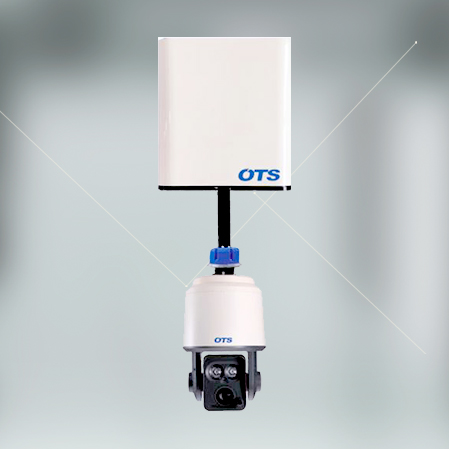

Auto-lift is a ‘CCTV camera lifting and lowering system’ designed to assist safe and fast inspection and maintenance by lowering various speed dome CCTV cameras mounted at a height or hazardous locations to the ground.

[Features]

· Wired and wireless controlling convenience of lifting and lowering

· Operable at altitudes 10-30m

· Compatible with various speed dome CCTV cameras under 10kg (HD/SD)

· Configure lowering height to prevent damage to CCTV camera

· Limit function to prevent motor overload from unnecessary control

· Dustproof and waterproof class IP55

· Lifting and lowering function using smartphone application (optional/for Androids)

[Specifications]

■OPTION

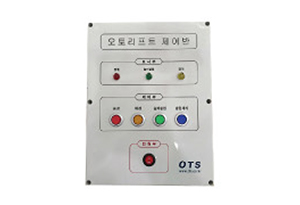

Separate Control Panel OTS ACU-1

[Features]

Lifting : Press once for one-touch lifting

Lowering : Press once for one-touch lowering. Stops at configured height if applicable.

Height Configuration

- Set up : Lower and press for 5 seconds at desired height to set

- Release : Press for 5 seconds at default position to release

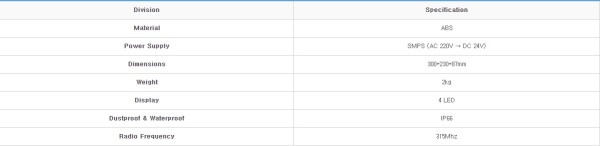

[Specifications]

[Features]

Basic Components : Auto-lifting device, mounting bracket, camera not included

Operation Method

1. Separate Control Board - etachable main board Includes wired switch function

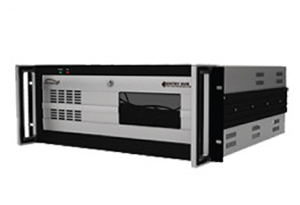

2. Central control network video recorder - Video record with built-in auto-lift control function (installed at situation room)
