(Field Control Device)

현장제어장치

Field control device is a preparatory program for controlling image, surveillance and risk of fire at each location of camera and a DVR-Player that connects image detection, sensor and floodlight necessary for major surveillance area.

[Features]

Monitor unauthorized access to external boundary day/night

Monitor unauthorized intrusion of unauthorized personnel to restricted access facility

Fire surveillance to major facility

Monitor theft and change of location of loaded matter and other important device

Monitor abrupt appearance of unidentified object in security zone

Uses Windows XP, 7 as the basic operating system and is designed for users to easily and conveniently use all functions of system

Convenient search function (multichannel simultaneous search)

Picture division capability in 1, 4, 6, 9, 10, 13, and up to 16 segments

Image compensation function: Compensation function to optimal resolution using contrast, brightness and color

Connectivity with sensor and D/O (Digital Output)

Monitoring capability using PC monitor and general monitor

16 channel image/audio recording (480 fps) and real time display (480 fps)

Hardware watch-dog timer function for product safety

User-oriented convenient GUI (Graphical User Interface) and building floor mapping function

Recorded (saved) image searching/playback camera control function

Connectivity to Full HD camera

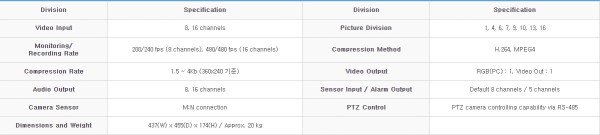

[Specifications]
